Outdoor waterproof high-brightness LED
High refresh rate and high grayscale performance — refresh rate up to 3840Hz and grayscale up to 14-bit. Enjoy smoother motion, richer layers, and more lifelike, finely detailed visuals.
With white-balanced brightness ≥ 4000 nits, the image stays stable, uniform, and flicker-free. Enhanced performance reduces dark first-line issues and improves low-gray color shift and sparkle/noise, delivering cleaner shadows and more natural gradients. Adjustable color temperature from 6500K to 25000K fits a wide range of applications.

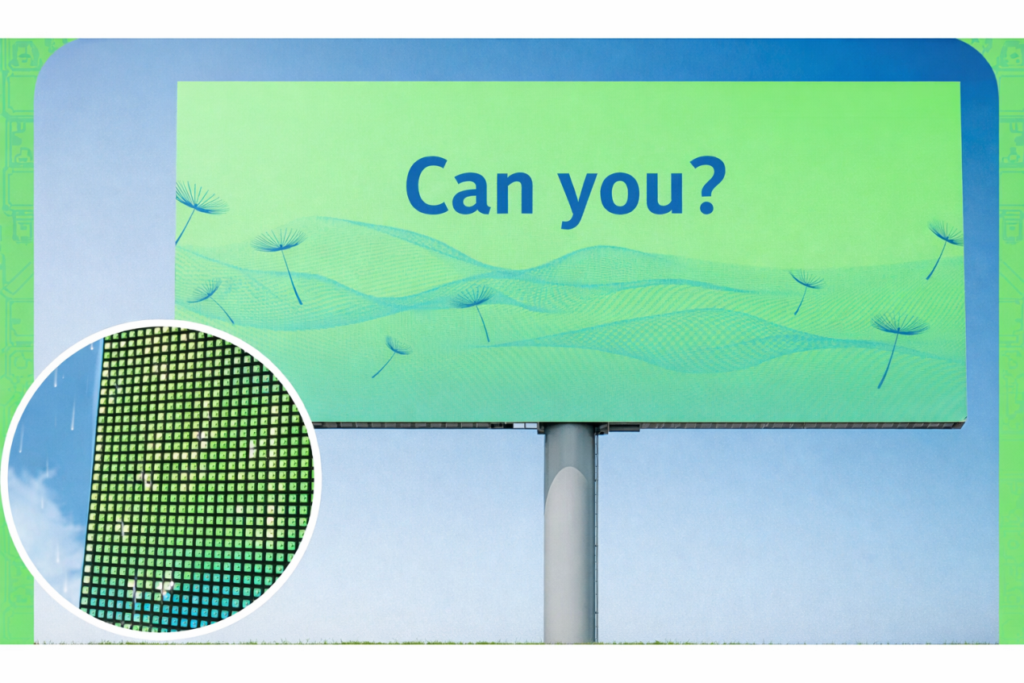

Built for outdoor durability with IP65 waterproof protection, delivering complete protection against water jets from any direction. Exceptional viewing experience with contrast up to 3000:1 and wide angles: 140° left/right, 70° upward, 40° downward. High reliability and long service life make it ideal for demanding 24/7 operation.
model | P2 | P 2.5 | P 3.076 | P 4 | P 5 | P 10 |
Dot spacing | 2.mm | 2.5mm | 3.076mm | 4mm | 5mm | 10mm |
Packaging method | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 | SMD 3-in-1 |

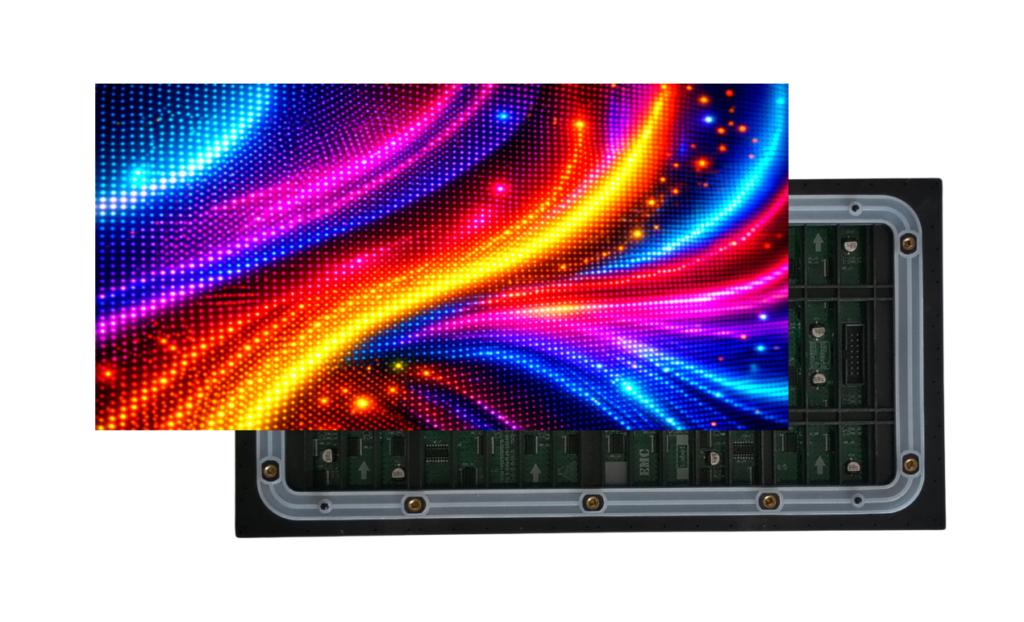

Module size mm | W320×H160 | W320×H160 | W320×H160 | W320×H160 | W320×H160 | W320×H160 |
Module Resolution | 160×80 | 128×64 | 104×52 | 80×40 | 64×32 | 32×16 |
Refresh Rate | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz | 3840Hz |
Maximum power | 900W/m² | 900W/m² | 900W/m² | 900W/m² | 900W/m² | 900W/m² |
